2.0m Fixed Type Platform Crane Loading Deck FMLP2000 Width 2000mm Full Load Certificate

2.0m Fixed Type Platform Crane Loading Deck FMLP2000 Width 2000mm Full Load Certificate
2.0m Fixed Type Platform Crane Loading Deck FMLP2000 Width 2000mm Full Load Certificate
video play

Large Image :  2.0m Fixed Type Platform Crane Loading Deck FMLP2000 Width 2000mm Full Load Certificate

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: Mill Certificate & Full-load Certificate
Model Number: FMLP2000
Payment & Shipping Terms:
Minimum Order Quantity: 1 Unit
Price: USD2000.00-3,000.00 per unit
Packaging Details: 3 Units in 1x20'GP, Nude in Container
Delivery Time: 40 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
Color: As Per Customer Max. Load: 3000kg
Treatment: Main Frame & Props Are With Hot Dip Galvanization Platform Width: 2.0m
Max. Outboard Length: 3.0m Painting: Sand Blasting & Epoxy Paint
High Light:

2000mm Platform Crane Loading Deck

,

Crane Loading Deck Full Load

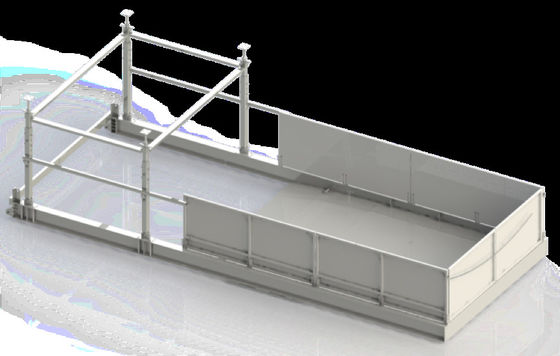

2.0m Fixed Type Platform Crane Loading Deck FMLP2000 Width 2000mm Full Load Certificate





Function

MLP series retractable loading deck is a unique product to improve materials handling efficiency and safety for the multi-storey and high rise construction sectors. It offers a cost effective method of delivering goods to different
levels of a building when used with a crane. When goods are required to be delivered toa particular floor levels,
all the decks installed above that level can be retracted, enabling the crane to operate unobstructed.



Application

The Crane Loading Deck is specially designed for coping with the challenges of multi-story construction sites. Our crane loading decks make access for tools and materials to different levels of multi-story construction sites safe and simple, while increase the working efficiency of tower cranes.



Crane Loading Deck Features

1. Easy pull/push system

2. Max. outboard length: 3m

3. Max. load capacity: 3ton

4. Platform width: 2m

5. With adjustable props for different floor heights

6. Compact design makes the transportation & installation much easier

7. With easy locking system

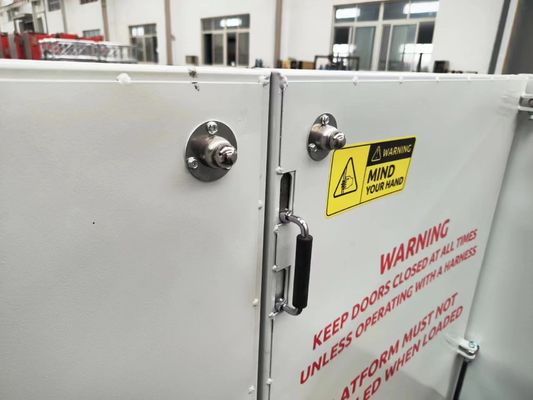

8. All pins are with chains to keep them from falling or losing





Item Symbol Unit Parameter Remark
Outer Width W1 mm 2000 Can be Customized
Inner Width W2 mm 1640
Distance between Front & Rear Props W3 mm 1600
Distance between Left & Right Props W4 mm 1850
Folded Height H mm 320
Min. Height of Props H1min mm 2600
Max. Height of Props H1max mm 3900
Side Panel Height H2 mm 1250
Total Length L1 mm 6000
Distance from Front Prop to Slab Edge L2 mm 1282
Outbound Length L3 mm 3000
Max. Load (Evenly Distributed)   t 3
