Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane
Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane

Large Image :  Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Model Number: TC5610 (QTZ63)
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Nude in Container, 2x40'HQ
Delivery Time: 50 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 5 units per month
Detailed Product Description
Max Load: 6ton Jib Length: 50m
Tip Load: 1.2ton Lifting Mechanism Power: JT1.5
Trolleying Mechanism: BF-63 Slewing Mechanism: HZ-63
High Light:

6ton fixed tower crane

,

50m qtz63 tower crane

,

6ton qtz63 tower crane

Topkit QTZ63(TC5610) Tower Crane with 6ton Lifting Capacity Panel Type Mast Section for High Rise Building Construction



INTRODUCTION OF TOWER CRANE

We have more than 20 years production experiences of construction machinery manufacturing, also customized products design and products are available, and exported to more than 40 countries in the world, such as Southeast Asia, Russia, Ukraine etc.

With load capacities ranging from 5 ton to 20 tons. the jib length from 48m to 75m. Along with the powerful technology support and high precision processing machinery, we are building a high-level Chinese machinery brand in the world!



Tower Crane Features

1. Overall safety system:
    Overload limiter, lifting moment limiter, lifting height limit device, slewing angle limit device;

    Optional: Safety monitor device. This monitor device can show the actual working conditions of the tower crane in real-time,        which provides a direct instructions to the operator, and it can also record the working process as “black box”.

    Warning lights on jib tips and tower head.
    All of the safety devices are supplied with high stability and durable quality.


2. Hoisting, slewing and trolleying mechanisms are all supplied by top quality manufacturers in China.


3. Main electrical components like contactors, switches are from Schneider (high quality grade in Schneider products), with long life span and good performance.


4. Steel parts are purchased from reputed steel mills and steel structures are designed in perfect force construction, which has much better load performance in same steel weight.


5. All steel parts are with ball blasting treatment before painting, leading to better antirust and appearance.


6. Space capsule type operator cabin is equipped with A.C device, making it more comfortable for the operation.



7. Different types of mast section and tie-in for worldwide famous tower crane brands. Ball blasting and high quality of epoxy painting production line, make sure 100% compatible with the original products.



8. Free easy wearing parts Plus One Year Warranty.







Specifications:



Model TC5610
Version Fixed type
Free height 40 meters
Max height 140 meters
Max radius 56 meters
Jib end load 1.33t at 51meters
Max load 6t at 13.7 meters
Hoisting mechanism ↑↓ JT1.5
Drum capacity 280 meters
Slewing speed 0.63r/min
Trolley speed 28 or 42m/min
Power line voltage 380V/50Hz
Color Yellow
Mast section 1.8x1.8x3m
Mast section and Mast section connection By screw
Foundation bolt Included
Cabin (with air condition) Included (with air conditioner)
Telescoping cage Included
Pump and cylinder Included
Main cable Included
Basic mast Included

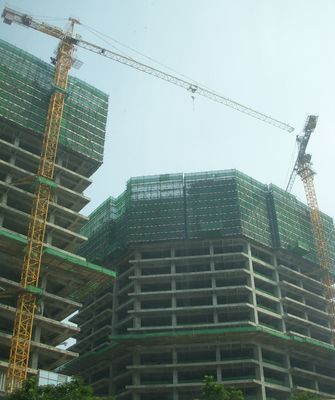

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 0

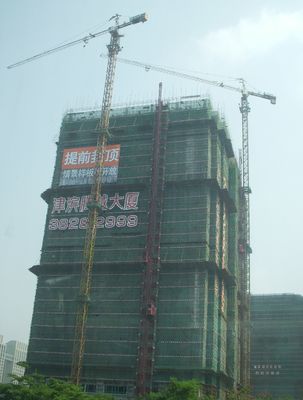

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 1

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 2

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 3

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 4

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 5

Safety Monitor Device 6ton Fixed Tower Crane , 50m Qtz63 Tower Crane 6
