High Rise 18m 4ton Building Construction Crane Hoisting Mechanism

High Rise 18m 4ton Building Construction Crane Hoisting Mechanism
High Rise 18m 4ton Building Construction Crane Hoisting Mechanism High Rise 18m 4ton Building Construction Crane Hoisting Mechanism High Rise 18m 4ton Building Construction Crane Hoisting Mechanism

Large Image :  High Rise 18m 4ton Building Construction Crane Hoisting Mechanism

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: CE
Model Number: TW1830
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Nude in Container, 2x40'HQ
Delivery Time: 50 days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 5 units per month
Detailed Product Description
Max Load: 4ton Jib Length: 18m
Tip Load: 3ton Lifting Mechanism Power: 10LVF20(Frequency Mechanism)
Luffing Mechanism: 10DVF20H(Frequency Mechanism) Slewing Mechanism: 5RVF
High Light:

4ton building construction crane

,

18m building construction crane

,

4ton high rise construction cranes

Roof Crane TCW1830-4 for Derrick Crane Installation or Materials Handling on the Top of Buildings



Derrick Crane TCW1830-4



Features:

Derrick crane can be assembled on top of roofs or high-rising buildings to help lift power units and cooling systems. They are efficient even when the crane cannot be lowered of dismantled with an auxiliary crane in heights of up to 300 meters.



Derrick cranes is also specially used for disassembling and unloading the inner climbing tower crane at the top of high-rising building. The main mechanisms of the derrick crane include trolley mechanism, slewing mechanism, and hoisting mechanism. The luffing range is 84°-15°. Both hoisting height and load capacity meet customer requirements and also can match to a variety of domestic and international power supply.

The derrick crane are equipped with inverter control and visual cab roof, making the operation more smooth and convenient.



Other models can also be customized according to your requirement.



Specifications



Model DC1830 Jib length 18 m
Max load 4 tons Tip load 3 tons
Wire Rope Drum Capacity 400m
Mechanism
Hoisting mechanism 10LVF20(Frequency mechanism) Slewing mechanism 5RVF
Luffing mechanism 10DVF20H(Frequency mechanism)



Supply Scope



1) 1 set hoisting mechanism
2) 1 set slewing mechanism
3) 1 set Luffing mechanism
4) 1 set jib 18 M
6) 1 set vertical Beam with 2 back support bars.
7) 1 set slewing table Chassis
8) Complete set Electric control system

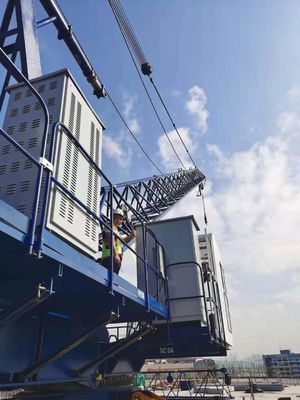

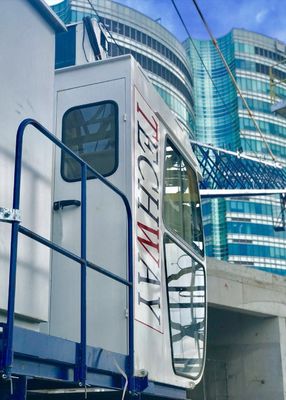

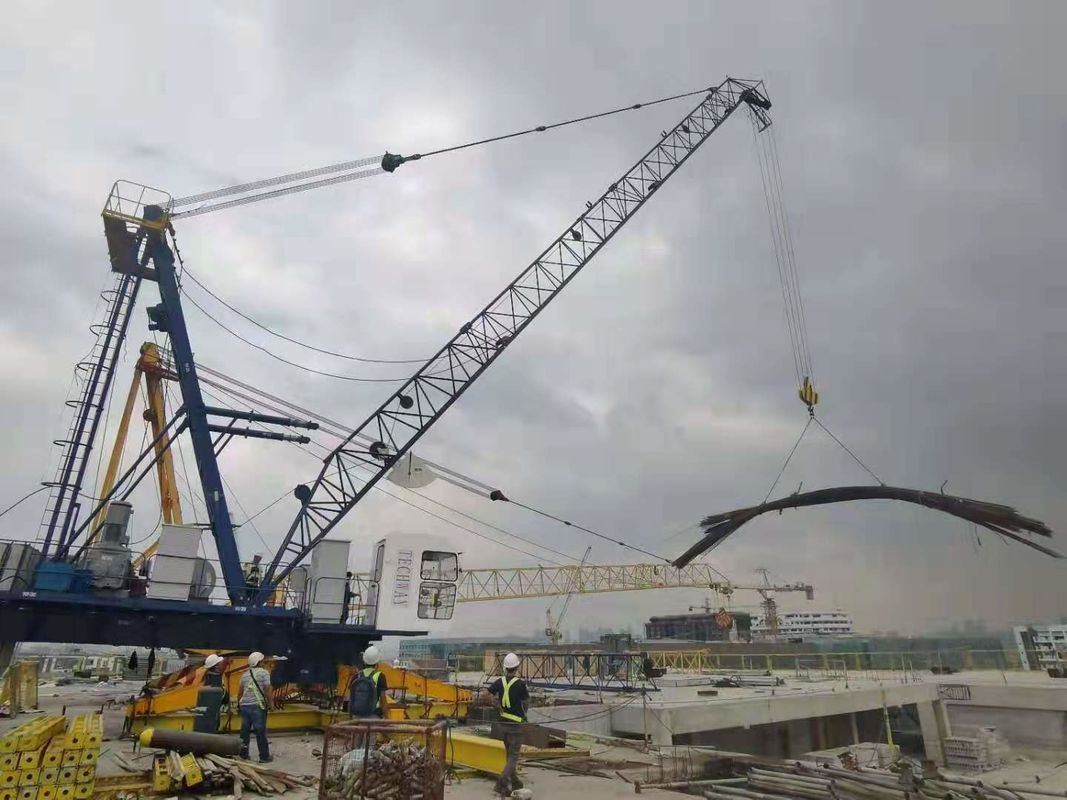

High Rise 18m 4ton Building Construction Crane Hoisting Mechanism 0





High Rise 18m 4ton Building Construction Crane Hoisting Mechanism 1High Rise 18m 4ton Building Construction Crane Hoisting Mechanism 2
