| Rated Power: | 15kW | Brake Force: | 150 Nm |
|---|---|---|---|
| Gearbox: | Helical Bevel Type | ||
| High Light: | 15kw electric motor gearbox,150Nm electric motor gearbox,15kw nord motor gearbox |
||

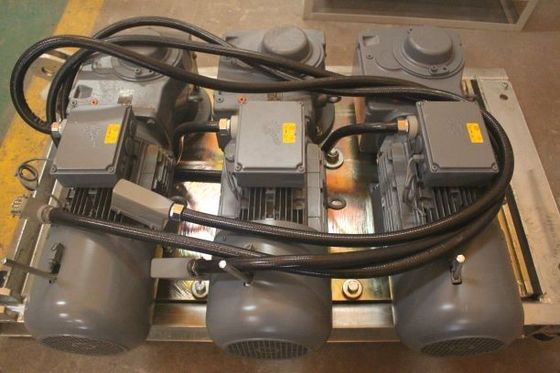

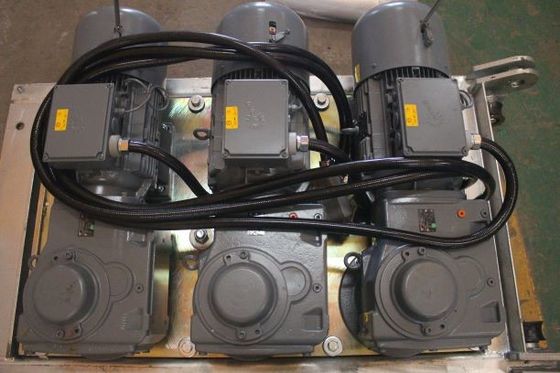

Building Hoist Parts 15kW NORD Motor & Helical Bevel Gearbox for SC270G Building Hoist/Construction Elevator
More power, less weight -the new bevel gear units from NORD DRIVESYSTEMS
Bevel gear units
Bevel gear units are angular gear units in which the motor shaft and the output shaft form a 90° angle. This results in a favourable spatial
arrangement of the drive unit. NORD bevel gear units always have multiple gear stages.
The configuration of stages is a follows:
| 2-stage | 3-stage | 4-stage | |
| Helical gear stage Helical gear stage Bevel gear stage Helical gear stage |
-- 1st stage 2nd stage -- |
-- 1st stage 2nd stage 3rd stage |
1st stage 2nd stage 3rd stage 4th stage |
Bevel gear units are available with an integratedbackstop.
The bevel gear can be placed to the left or right of the bevel pinion, in order to reverse the direction of rotation between the drive shaft and output shaft.
Bevel gear units
• from 0.12 - 200 kW
• up to 50,000 Nm
• in 16 sizes
