Home ProductsElectric Motor Gearbox

IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor

IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor
IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor

Large Image :  IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor

Product Details:
Place of Origin: China
Brand Name: CZJD
Certification: CE
Model Number: YEJ/YDEJ
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Plywood box in container
Delivery Time: 20 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 1000 Units Per Month
Detailed Product Description
Rated Power: 11kW Gearbox: Worm Type
High Light:

50Hz electric motor gearbox

,

IP44 electric motor gearbox

,

50Hz 3 phase ac induction motor

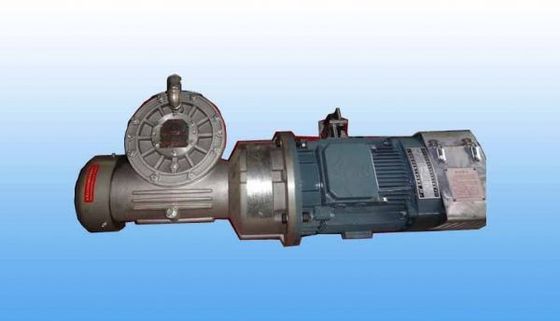

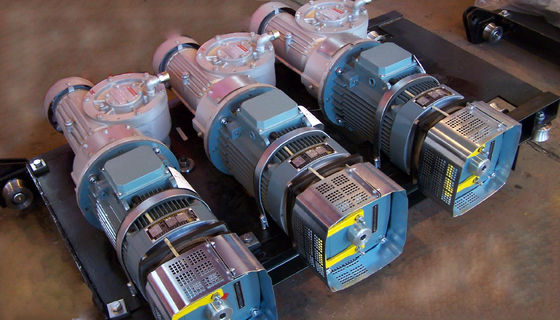

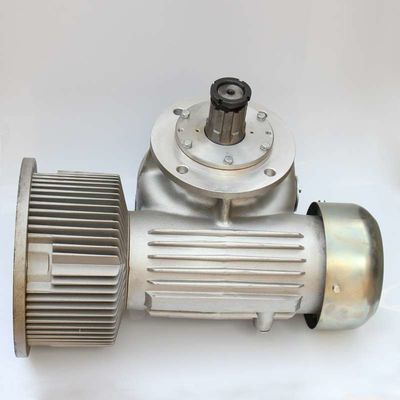

Building Hoist Parts Three Phase Induction Motor & Worm Gearbox for SC200G Building Hoist/Construction Elevator



Introduction

YEJ(single speed),YDEJ(multi-speeds)series three phase induction motor with electromagnetic braking,is composed with three phase induction motor and DC plan brake. Its installation dimension is same as Y series electrical motors, and comply with IEC standards.



This series electrical motor has features of compact structures, reliable braking, accurate positioning, wide adjustable range of brake torque. It is widely used in various lifting equipment, metallurgical and chemical equipment and light or heavy industries where fast stopping and accurate positioning is requested.



Rated Voltage: 380V
Rated Frequency: 50Hz
DC Voltage for brake: 170V,99V,24V, also could be AC according to actual needs
IP Grade: Motor case: IP44; Brake:IP23
Insulation Grade: YEJ-B, YDEJ-F
Standard wo rking class: Continuous SI



Working condition

1. Elevation level ≤1000m

2. Ambient temperature≤40℃

3. Ambient relative humidity ≤85%



IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor 0



IP44 Electric Motor Gearbox , 50Hz 3 Phase AC Induction Motor 1
