Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line

China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
China GUANGZHOU TECHWAY MACHINERY CORPORATION certification
TW is my very reliable partner for building hoist, we have been working with each other since year 2015, and I am very happy with their performance and support. Very glad they have newly opened the most advanced production facilities in China, and hope I could be there for their official ceremony once the COVID is over.

—— Lederberg Sha***

Their material loading bay is really fantastic, with their qualified products, now we are expanding our rental & sales business from Sydney to more cities in Australia.

—— Jay JAW***

I'm Online Chat Now

Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line

Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line
Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line

Large Image :  Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line

Product Details:
Place of Origin: China
Brand Name: TW-TECHWAY
Certification: CE
Model Number: 16mm²/25mm² /35mm²
Payment & Shipping Terms:
Minimum Order Quantity: 1 piece
Price: Negotiable
Packaging Details: Paper Box
Delivery Time: 20 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 1000 Units Per Month
Detailed Product Description
Cover Material: High Strength Nylon Voltage: AC110V/ AC220V
Working Range: 300m And Above Frequency Channel: 250Hz/740Hz/800Hz
High Light:

16mm2 electrical bus bar

,

reusable electrical bus bar

,

16mm2 flexible copper busbar

Passenger Hoist Bus bar/ sliding contact line of building hosit/ building hoist spart parts/



Features:
• No extra load on the building hoist cages: The busbar is installed on the mast sections; thus, its weight is distributed evenly on the mast sections.
• Stable and secure even during bad weather: If installed and fixed properly on the mast section, it stays securely and in place in the event of strong winds, (removing the concerns of the swinging cables).
• Value: Less risk for theft. Value of the bus bar is lowered once it has been used. Cable, on the other hand is made of copper, which will remain expensive no matter how many times it has been used.
• Easy and convenient maintenance: Bus Bars are installed by sections. During troubleshooting and repair, maintenance personnel will only need to check and/or replace the damaged section of the bus bar. This is much more convenient comparing to replacing the whole cable line.

• Acts as limit switch: In the event when the unit’s anti-over run limiter fails, the bus bar will be able to detect any operation over-run and will cut off power supply to shut down the building hoist.
• Adjusts accordingly to desired working height: Installation height of the bus bar can be adjusted accordingly to the project’s progress; they are installed section by section along with the mast sections.
• Reusable: Standard life span of the the bus bar is 5-6 years. It can be dismantled from previous projects and then used for the next projects.



Specifications:

Motor Power (kw) Installation height (M) Bus bar model(mm²)
2X11 H≤300 16
3x11 H≤300 25
3x11 300<H≤500 35
3x15 H≤150 25
3x15 150<H≤500 35
3x18.5 H≤150 25
3x18.5 150<H≤350 35



Case Show:

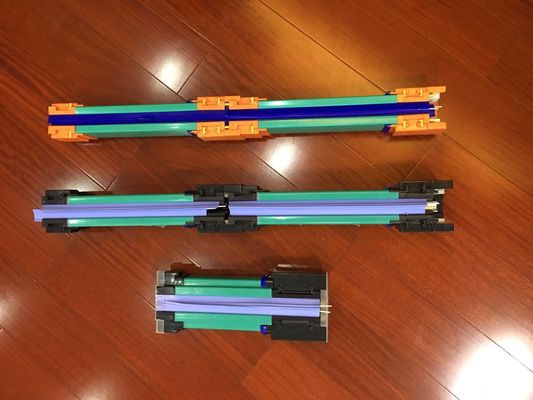

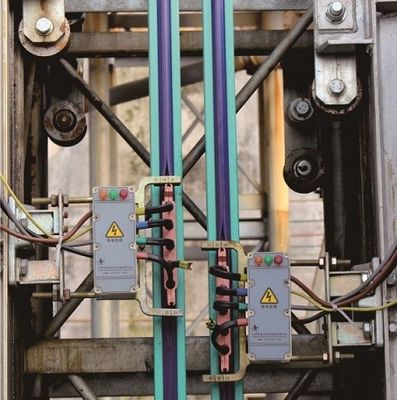

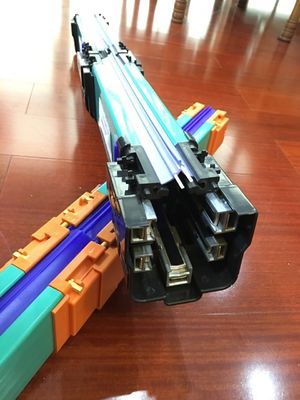

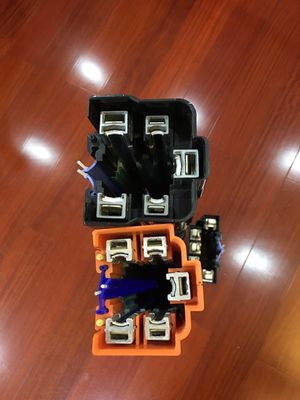

Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 0Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 1Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 2Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 3Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 4Reusable 16mm2 Flexible Copper Electrical Bus Bar Sliding Contact Line 5
