| Height: | 1508mm | Width: | 580mm |
|---|---|---|---|
| Length: | 600mm | Pipe Thickness: | 4.0mm |
| Material: | Q355B | Treatment: | Hot Dip Galvanization/Painted |
| High Light: | 4.0mm Thickness Mast Tower,WICKHAM Building Hoist Mast Tower |
||

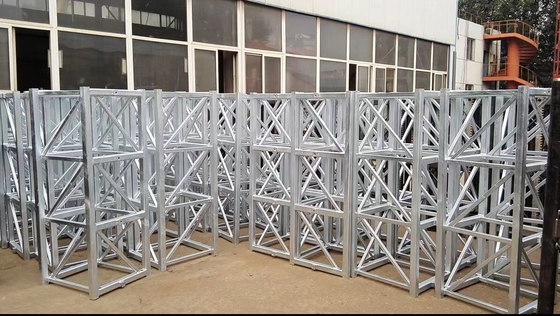

600x580x1508mm Mast Tower with Rack for WICKHAM GP200HD Passenger Hoist
Mast Tower is the force-bearing part of the building hoist/construction elevator, also serves as the guiding rail for the operation of the building hoist's cabins. Each mast tower is connected with 8.8-level high strength bolts to make up the required height. The mast section, which has superior quality and significant bearing ability, is produced according to original drawings of WICKHAM Passenger Hoist.
Mast Tower is welded by hollow sections and squre tubes. The tower length is 1508mm, and the rack is fixed on the mast by four hex socket screws, which can be replaced. The lower ends of four main mast pipes have positioning devices, also there is positioning pin at lower end of the rack, which is used for mast section installation.
Cross-section dimension of the mast is 600 x 580 mm. According to customer’s needs, surface of mast can be painted or hot dip galvanized (HDG), which has higher strength and good anti-rusting performance.
4.0mm thickness mast tower is suitable for building hoist/construction elevator with working height less than 150m.
| Mast Specification | |
| Legnth | 600mm |
| Width | 580mm |
| Height | 1508mm |
| Hollow Section | 50x50mm |
| Hollow Section Thickness | 4.0mm |
| Weight (Double Rack) | 100kg |
| Weight (Single Rack) | 125kg |
Perfectly Matched with Original WICKHAM Mast Towers!

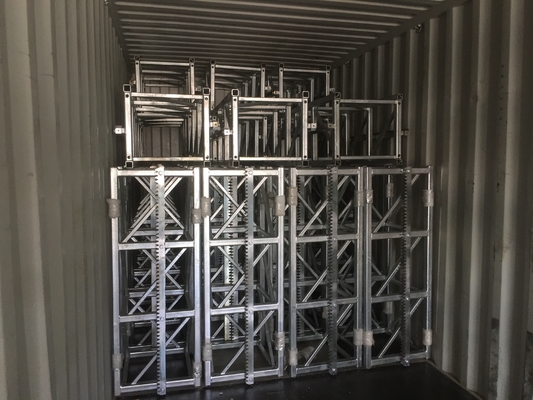

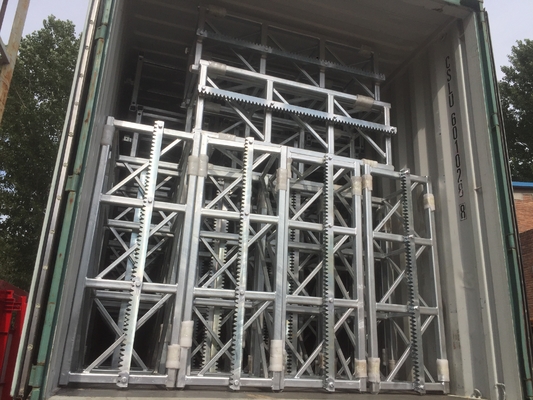

200 Units of Finished Products are Available at Stock!
