|Material:||Q355B||Treatment:||Hot Dip Galvanization/Painted|
1508mm mast section,
Q355B mast section,
Q355B Hoist Spare Parts
Hoist Spare Parts 200mm Half Mast Tower with Rack of Building Hoist/Construction Elevator for High Rise Buildings

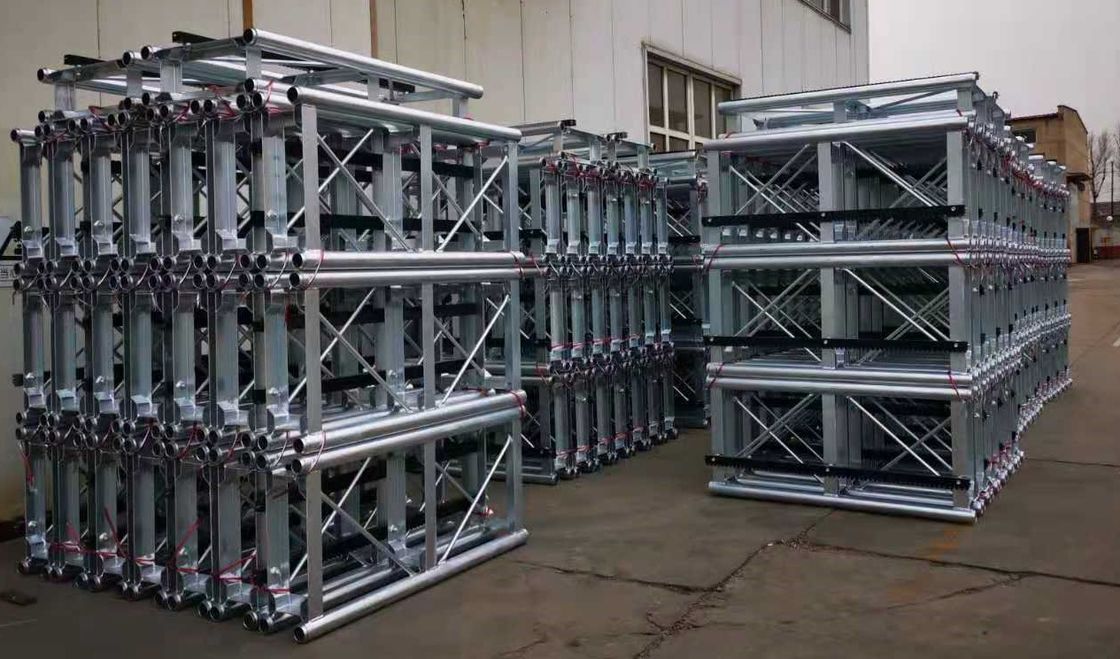

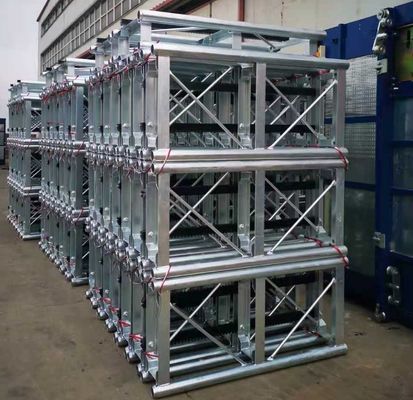

Mast section is the force-bearing part of the building hoist/construction elevator, also serves as the guiding rail for the cart's running. Each mast section is connected with 8.8-level high strength bolts to make up the required height. The mast section, which has superior quality and significant bearing ability, is produced with quality Φ76 steel pipes.
Mast section is welded by steel pipes, angle steel. The section length is 1508mm, and the rack is fixed on the mast by three hex socket screws, which can be replaced. The lower ends of four main mast pipes have positioning devices, also there is positioning pin at lower end of the rack, which is used for mast section installation.
Cross-section dimension of the mast is 650 x 200 mm, which is used in narrow space like elevator shaft, chimney sit, etc.
According to customer’s needs, surface of mast can be painted or hot dip galvanized (HDG), which has higher strength and good anti-rusting performance.
4.5mm thickness mast section is suitable for building hoist/construction elevator with working height less than 150m.
|Main Pipe Diameter||76mm|
|Mian Pipe Thickness||6.0mm|
|Weight (Single Rack)||125kg|
Our mast sections are welded by welding robot, with high accuracy.
