Product Details:
Payment & Shipping Terms:
|
| Max Load: | 3ton | Jib Length: | 15m |
|---|---|---|---|
| Tip Load: | 1.5ton | Lifting Mechanism Power: | 15LVF15 (frequency Control) |
| Luffing Mechanism: | 15DVF15 (frequency Control) | Slewing Mechanism: | BELD42-493-(Y100) |
| High Light: | 3ton construction tower crane,60HZ construction tower crane,3ton lifting tower crane |
||
Roof Crane TCW1515 for Derrick Crane Installation or Materials Handling on the Roof
Derrick Crane TCW1515
Features:

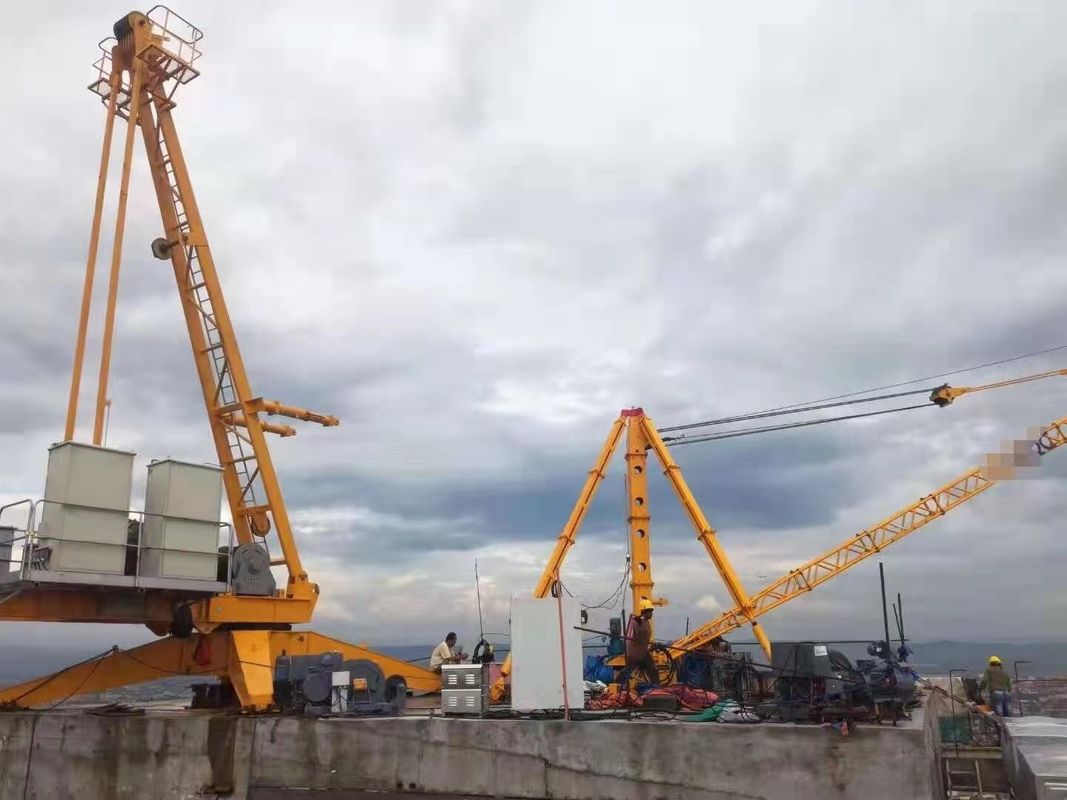

Derrick cranes can be assembled on top of roofs or high-rising buildings to help lift power units and cooling systems. They are efficient even when the crane cannot be lowered of dismantled with an auxiliary crane in heights of up to 300 meters.
Derrick cranes is also specially used for disassembling and unloading the inner climbing tower crane at the top of high-rising building. The main mechanisms of the derrick crane include trolley mechanism, slewing mechanism, and hoisting mechanism. The luffing range is 84°-15°. Both hoisting height and load capacity meet customer requirements and also can match to a variety of domestic and international power supply.
The derrick crane are equipped with inverter control and visual cab roof, making the operation more smooth and convenient.
Other models can also be customized according to your requirement.
Parameters:
| MODEL | TW1515 |
| MAX LOAD | 3.0T |
| TIP LOAD | 1.5T |
| JIB LENGTH | 15M |
| HOISTING MECHANISM | 15LVF15 (frequency control) |
| SLEWING MECHANISM | BELD42-493-(Y100) |
| LUFFING MECHANISM | 15LVF15 (frequency control) |
| POWER SUPPLY | 380V, 50HZ/ 440V,60HZ |
