Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch

Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch
Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch

Large Image :  Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch

Product Details:
Place of Origin: China
Brand Name: SRIBS
Certification: CCC,CE
Model Number: SAJ65-2.0
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Paper Box in Container
Delivery Time: 15 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 1000 Units Per Month
Detailed Product Description
Trigger Speed: 2.0m/s Max. Brake Load: 65 KN
Expire Date: 5years
High Light:

65kN SAJ Safety Device

,

2.0m/s SAJ Safety Device

Safety Device for Buidling Hoist/Conctruction Elevator

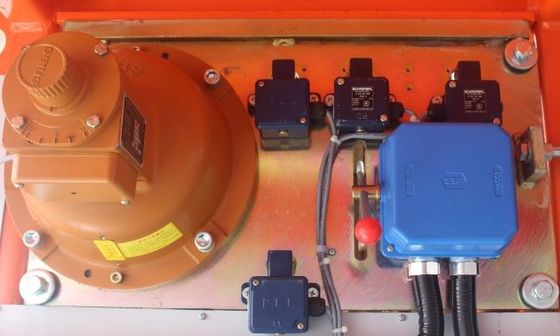

SAJ safety device is compulsory part on the building hoist/construction in China. When the building hoist/construction elevator descends over the rated speed, the micro-switch inside the safety device will be activated to cut off the power of the building hoist/construction elevator. Together with the brake of the motors, the safety device's pinion stops the cart of building hoist/construction elevator's cart onto the mast section gradually, which is very critical to the safety system of the building hoist.



The life span of the SAJ series safety device is five (5) years, and it has to be tested every six (6) months after the first test during the installation of building hoist/construction elevator.



Specifications



Model Trigger speed Max. Brake Load Expire Date
SAJ30-1.2 1.2m/s 30 kN 5years
SAJ30-1.4 1.4m/s 30 kN 5years
SAJ40-1.2 1.2m/s 40 kN 5years
SAJ40-1.4 1.4m/s 40 kN 5years
SAJ40-2.0 2.0m/s 40 kN 5years
SAJ50-1.4 1.4m/s 50kN 5years
SAJ50-2.0 1.4m/s 50kN 5years
SAJ60-2.0 1.4m/s 60kN 5years
SAJ65-2.0 2.0m/s 65kN 5years

























Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch 0



Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch 1



Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch 2

Building Hoist Parts 2.0m/S 65kN SAJ Safety Device With Micro Switch 3
