| Input Power: | 16-18.5kW | Input RPM: | 1400RPM |
|---|---|---|---|
| Gearbox: | WormType | Net Weight: | 51kg |
| High Light: | 16kw worm drive gearbox,40:4 Ratio worm drive gearbox,16kw small worm gearbox |
||

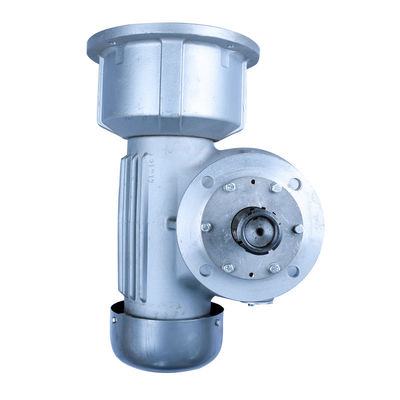

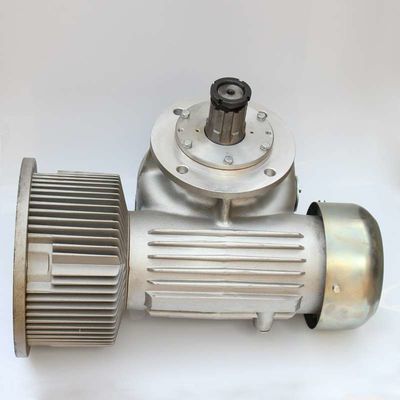

Building Hoist Parts 40:4 Ratio Worm Gearbox with Plastic Coupler for Building Hoist/Construction Elevator
Product Features
The gearbox is specially designed for building hoist/construction elevator. It adopts planar envelope worm transmission type, compared with other worm gear, it has features as following: bigger loading capacity, high transmission efficiency, stable operation, low noise and longer life span.
The gearbox’s case is casted with high strength aluminum alloy, with higher strength and lighter weight.
Specifiaction
| Model | Center distance(mm) | Ratio | Input Power(kW) | Input RPM(r/min) | Load Rate per Hour(%) | Net Weight(kg) |
| TU65 | 125 | 48/3 | 11 | 1400 | 25 | 51 |
| TU65T♦ | 125 | 48/3 | 10-16.5 | 1400 | 25 | 51 |
| TU66T | 125 | 40/4 | 16-18.5 | 1400 | 25 | 51 |
| TU67 | 125 | 42/3 | 11 | 1400 | 25 | 51 |
| TU67T♦ | 125 | 42/3 | 10-16.5 | 1400 | 25 | 51 |
| TU68 | 125 | 48/4 | 16-18.5 | 1400 | 25 | 51 |
Remarks: the models with (♦) are suitable for SC200/200 building hoist/construction elevator. Driving pinions can be installed to the output shaft of all the models above.
