IP44 15kW Three Phase Induction Motor Gearbox IEC Standards

IP44 15kW Three Phase Induction Motor Gearbox IEC Standards
IP44 15kW Three Phase Induction Motor Gearbox IEC Standards IP44 15kW Three Phase Induction Motor Gearbox IEC Standards IP44 15kW Three Phase Induction Motor Gearbox IEC Standards

Large Image :  IP44 15kW Three Phase Induction Motor Gearbox IEC Standards

Product Details:
Place of Origin: China
Brand Name: CZJD
Certification: CE
Model Number: YEJ/YDEJ
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Plywood box in container
Delivery Time: 20 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 1000 Units Per Month
Detailed Product Description
Rated Power: 15kW Gearbox: Worm Type
High Light:

15kW three phase induction motor

,

IP44 three phase induction motor

,

15kW induction motor gearbox

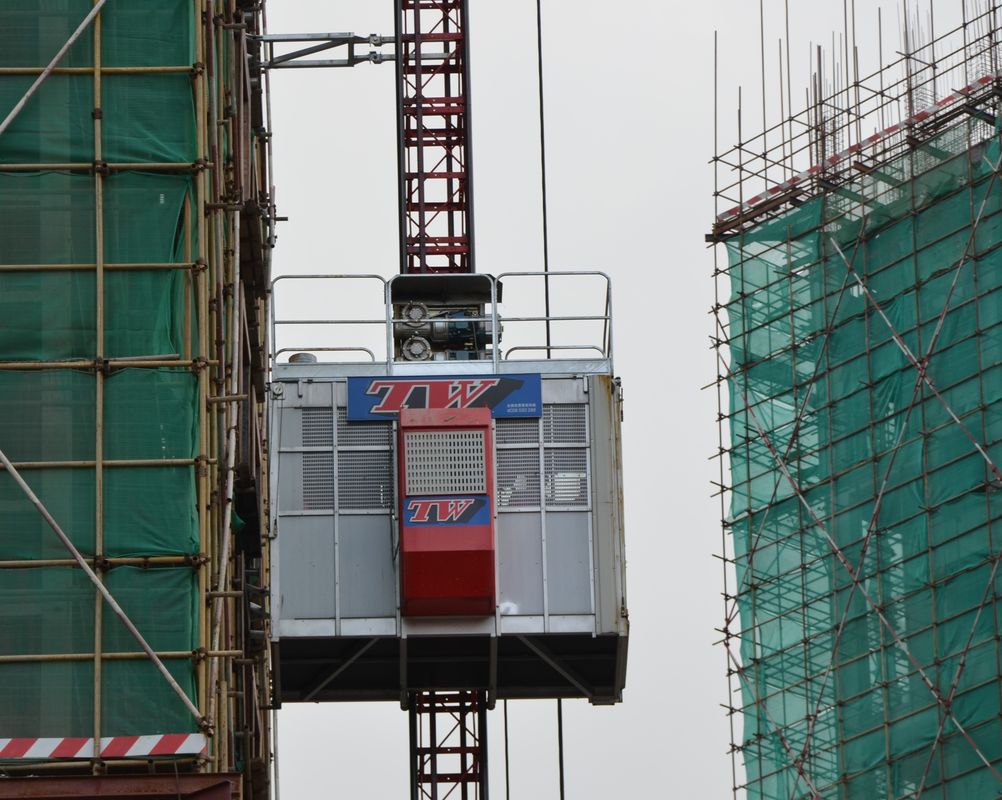

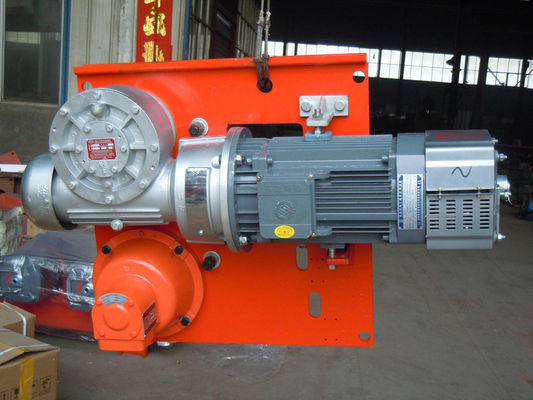

Building Hoist Parts 15kW Three Phase Induction Motor & Worm Gearbox for SC200G Building Hoist/Construction Elevator



Introduction

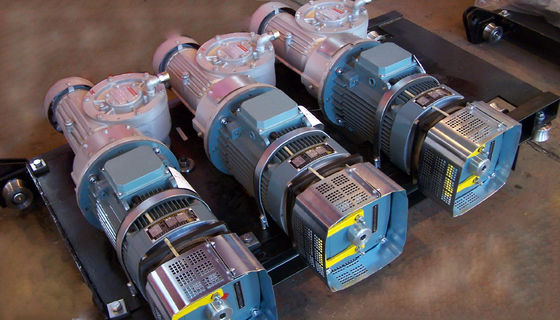

YEJ(single speed),YDEJ(multi-speeds)series three phase induction motor with electromagnetic braking,is composed with three phase induction motor and DC plan brake. Its installation dimension is same as Y series electrical motors, and comply with IEC standards.



This series electrical motor has features of compact structures, reliable braking, accurate positioning, wide adjustable range of brake torque. It is widely used in various lifting equipment, metallurgical and chemical equipment and light or heavy industries where fast stopping and accurate positioning is requested.



Rated Voltage: 380V
Rated Frequency: 50Hz
DC Voltage for brake: 170V,99V,24V, also could be AC according to actual needs
IP Grade: Motor case: IP44; Brake:IP23
Insulation Grade: YEJ-B, YDEJ-F
Standard wo rking class: Continuous SI



Working condition

1. Elevation level ≤1000m

2. Ambient temperature≤40℃

3. Ambient relative humidity ≤85%



IP44 15kW Three Phase Induction Motor Gearbox IEC Standards 0



IP44 15kW Three Phase Induction Motor Gearbox IEC Standards 1
