Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed

Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed
Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed

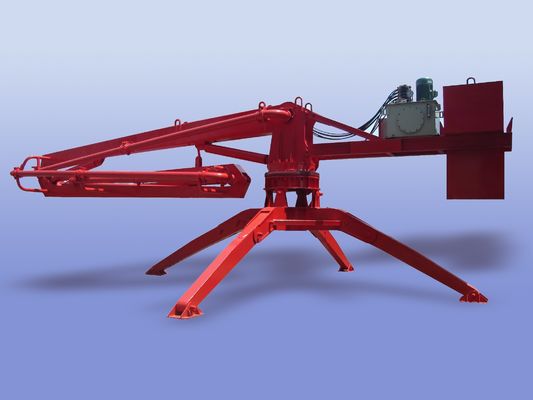

Large Image :  Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed

Product Details:
Place of Origin: China
Brand Name: TECHWAY
Certification: CE
Model Number: HGY-13
Payment & Shipping Terms:
Minimum Order Quantity: 1Unit
Price: Negotiable
Packaging Details: Nude in Container, 1x40'HQ
Delivery Time: 30 Days after advance payment
Payment Terms: L/C, T/T
Supply Ability: 100 Units per month
Detailed Product Description
High Light:

13m hydraulic concrete placing boom

,

20Mpa hydraulic concrete placing boom

,

13m manual placing boom

HGY-13 Mobile Placing Boom for Concrete Distribution /Mini placing boom/13 M concrete placing boom/Manual placing boom



Features:



1. The placing boom has a Z-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement

areas.

2. The boom assembly' s luffing, folding/unfolding and swinging are carried out hydraulically with buttons. The hydraulic and electrical .system feature overload protectors, flow controls, alarms, phase sequence protectors and so on, which ensures the placing boom to have reliable performance, easy and smooth operation, and high safety.

3. Featuring compact structure and lightweight, the placing boom can be completely lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it

can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.

4. The HGY13 is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.



Specifications:



Model HGY13
Horizontal reach 13 M
Hydraulic output 4 KW
Hydraulic pressure 20 Mpa
Rotation 360 °
Pipe diameter 125mm
Weight (no counterweight) 2700 kgs
Counter weight 4300 kgs

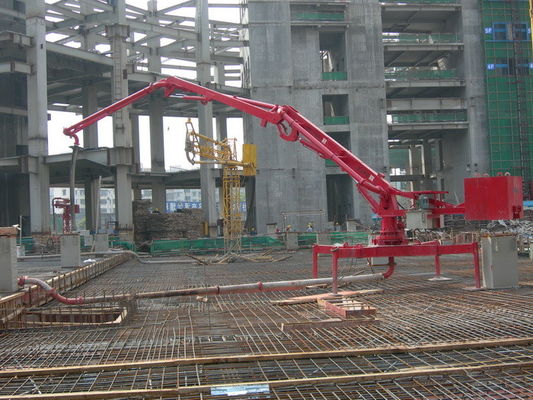

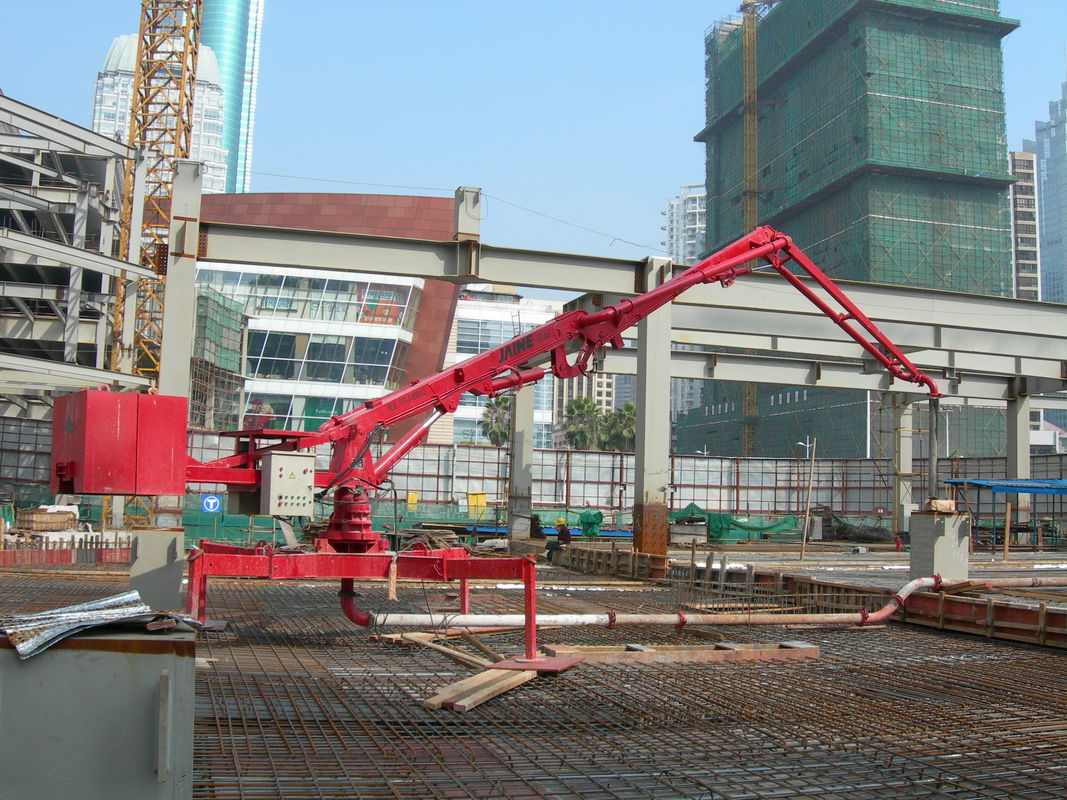

Case Show:



Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed 0Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed 1Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed 2Manual 13m 20Mpa Hydraulic Concrete Placing Boom 360 Degree Slewed 3
