| High Light: | 32m self climbing concrete placing boom,18KW self climbing concrete placing boom,18KW concrete placement boom |
||
|---|---|---|---|
HGY-32 Elevator fixed Placing Boom for Concrete Distribution /Self climbing concrete placing boom/32m boom
Features:
It is installed in the elevator shaft of the building, equipped with automatic climbing frame, and automatically climbing in the elevator shaft by using hydraulic cylinder jacking, so that the distributor rises with the rise of the floor, saving time and effort and high efficiency.
To improve the utilization of your tower crane, take advantage of the self-climbing option. Using existing floors for support, the boom and mast are raised through floor openings and secured by wedges and frames. This hydraulically operated system is protected and enclosed in the lower end of the tubular mast.
Specifications:
| Model | HGY32 |
| Horizontal reach | 32 |
| Hydraulic output | 18KW |
| Elivation angle | 0-90° |
| Rotation | 360 ° |
| Pipe diameter | 125mm |
| Control way | Remote control/cable/pannel control |

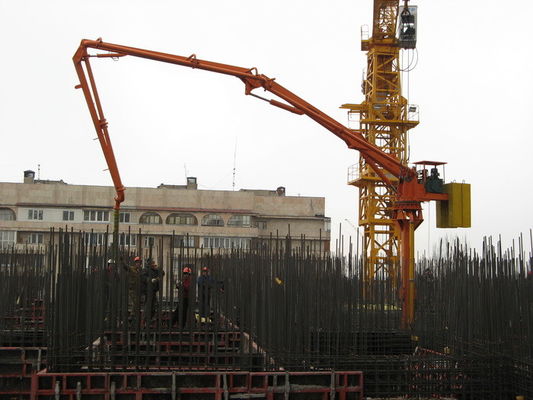

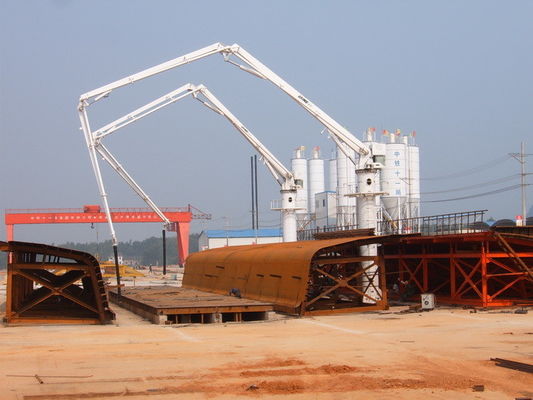

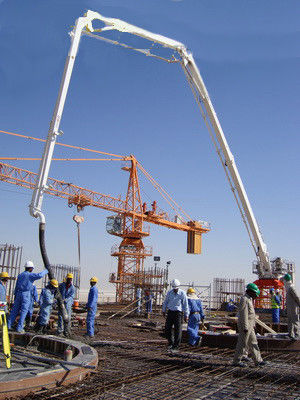

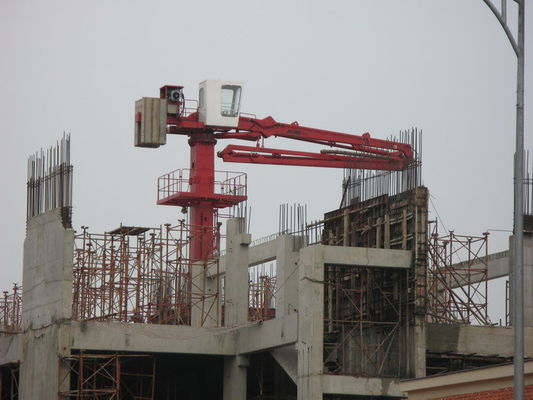

Case Show:
