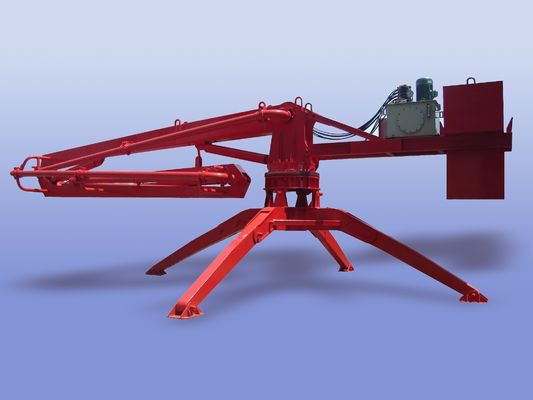

HGY-17 Mobile Placing Boom for Concrete Distribution /Mini placing boom/17M concrete placing boom/hydraulic placing boom
Features:
1. The placing boom has a R-shaped boom assembly with three foldable sections, which can swing through 360 degrees while luffing, folding/unfolding, thus allowing it to place concrete to form walls, pipes, columns, piles and other vertical structures without confined placement areas.
2.The boom assembly's luffing, folding/unfolding and swinging are carried out hydraulically with buttons.
3. Featuring compact structure, the placing boom can be lifted and transferred to any suitable places for concrete placement, such as floors, platforms, simply-structured racks or even trailers. It does not need to be fixed while working. In addition, it can be lifted off the placement sites when it is not needed, which leads to no disturbance to other jobs and easy maintenance.
4. The HGY17 is well fit for the construction of different floors and for complicated jobsites without being influenced by the size and shape of floors.
Specifications:
| Model | HGY17 |
| Horizontal reach | 17 M |
| Hydraulic output | 5.5 KW |
| Hydraulic pressure | 20 Mpa |
| Rotation | 360 ° |
| Pipe diameter | 125mm |
| Weight (no counterweight) | 4940 kgs |
| Counter weight | 2100 kgs |

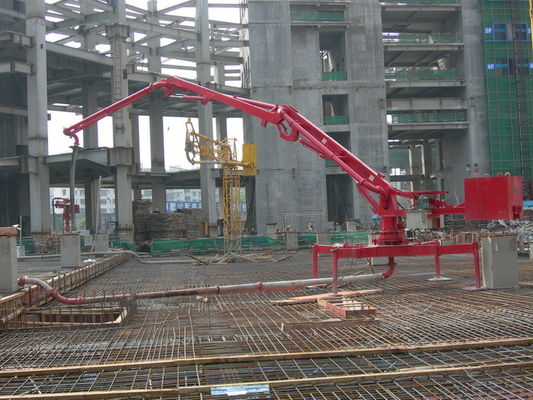

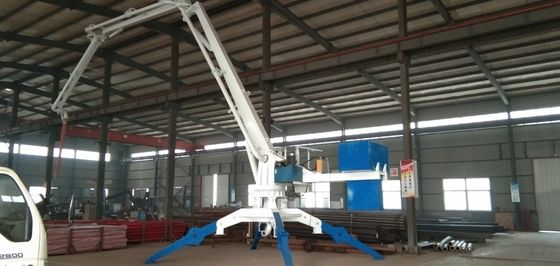

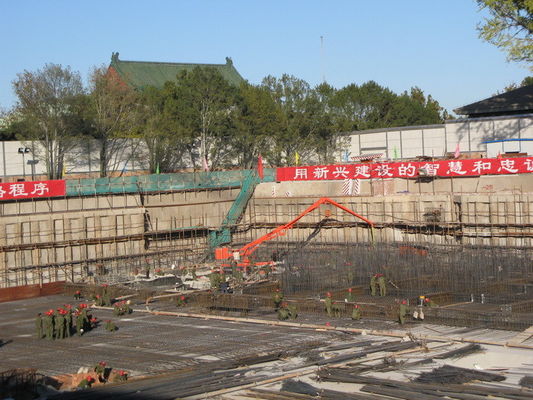

Case Show:
