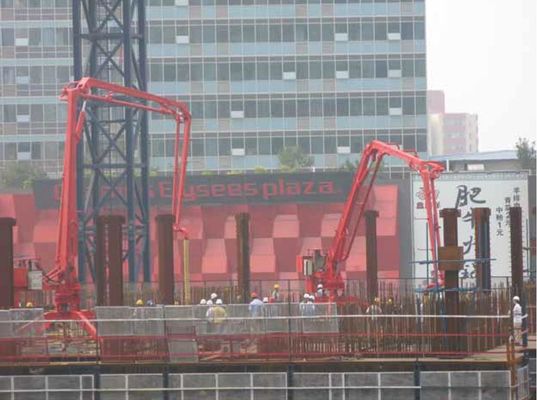

Mobile Placing Boom
Features about our Placing Boom
1.It can be place in suitable places required without being fixed.
2.It features compact structure, light weight and can be lifted as a whole by a crane.
3.With excellent maneuverability, it can meet the requirements for the concrete placement on different jobsites, and is ideal for concrete pumping and placing.
4.Easy operation, reliable safety and economical.
We can also supply Self Climbing Placing Boom and Stationary Placing Boom, if you need , you can call or email us at any time.

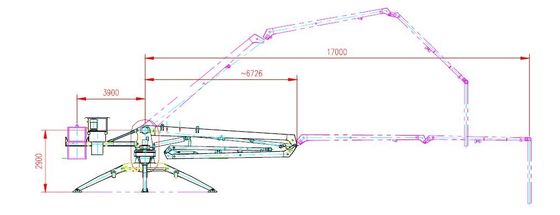

| Model | HGY13 | HGY15 | HGY17 |
| Horizontal reach | 13 | 15 | 17 |
| End-hose length | 3 | ||
| Rotation | 360 | ||
| Elevation angle | 2 to 84.4 | 0 to 90 | |
| Hydraulics output | 4 | 5.5 | |
| Hydraulic Pressure | 20 | ||
| Weight (no counterweight) | 2.7 | 3.2 | 4.94 |
| 1.6 | 2.2 | 2.1 |
|
